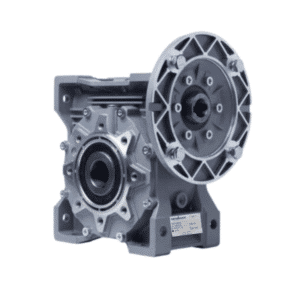

WORM GEAR BOX, SIZE 50, HOLLOW SHAFT END 25 MM, RATIO: 10, INPUT SHAFT: IEC FRAME 80B5. MOUNTING POSITION: B3
PRODUCT CODE:
PRODUCT CODE:
NW050 – 10Y - IEC80B5
Product Specifications
|
MODEL: |
NW |
|
Size: |
50 |
|
Ratio: |
10 |
|
Input Flange Dimension: |
19/200 (IEC80 B5) |
|
Output Shaft: |
Hollow Keyed |
|
Output Shaft Diameter: |
25H7 mm |
|
Gear Unit Weight: |
3.8 Kg |
|
Mounting Position: |
B3 |
|
Solid Output Shaft: |
No |
|
Double Solid Output Shaft: |
No |
|
Output Flange: |
No |
|
Cover: |
No |
|
Torque Arm: |
No |
|
Lubricant: |
Synthetic Oil VG 320 (Standard) |
|
Lubricant Quantity: |
0.153 Liter |
|
Gear Housing: |
Die-Cast Aluminum Alloy |
|
RAL Color: |
7024 Graphite Gray |
|
Shaft Seals: |
NBR |
|
Output Bearing type: |
Deep-Groove Ball Bearings |
|
MODEL: |
NW |
|
Size: |
50 |
|
Ratio: |
10 |
|
Input Flange Dimension: |
19/200 (IEC80 B5) |
|
Output Shaft: |
Hollow Keyed |
|
Output Shaft Diameter: |
25H7 mm |
|
Gear Unit Weight: |
3.8 Kg |
|
Mounting Position: |
B3 |
|
Solid Output Shaft: |
No |
|
Double Solid Output Shaft: |
No |
|
Output Flange |
No |
|
Cover |
No |
|
Torque Arm |
No |
|
Lubricant |
Synthetic Oil VG 320 (Standard) |
|
Lubricant Quantity |
0.153 Liter |
|
Gear Housing |
Die-Cast Aluminum Alloy |
|
RAL Color |
7024 Graphite Gray |
|
Shaft Seals: |
NBR |
|
Output Bearing type |
Deep-Groove Ball Bearings |
